H2OStop® Self-Sealing Filters for Suction Canisters / Liners

H2OStop® Self-Sealing Filters for Suction Canisters / Liners

Used in surgical waste management systems.
Details

Suction canisters / liners have been widely used in waste disposal and treatment in hospitals. Air is freely exhausted through self-sealing filters, allowing waste liquid being collected in suction canisters. Once contacted with waste liquid, self-sealing filters will be sealed immediately (self-sealing effect) and prevent waste liquid from spilling, protecting medical equipment and surroundings from being contaminated.

Features:

  • Working pressure > 50 kPa, equivalent to pressure of 5-10 m water
  • Stringent quality testing, complying with medical requirements

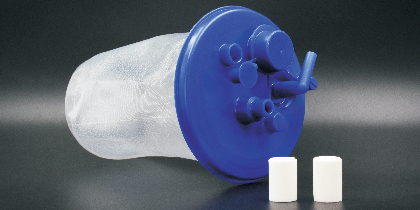

Suction liners with H2OStop self-sealing filters
Suction liners with H2OStop self-sealing filters

Suction liners with H2OStop® self-sealing filters

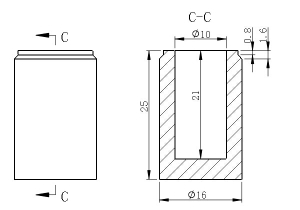

Typical size for IPA252

Typical size (for IPA252)

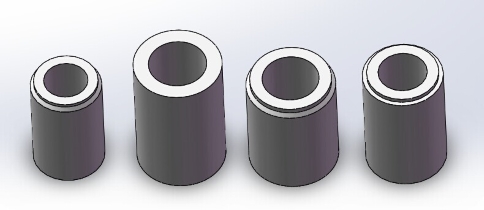

Typical filters for suction canisters

Typical filters for suction canisters: IPA160-245-X, IPA190-292-X, IPA252, IPA276 (from left to right)

Order information:

Cat. # O.D. I.D. Height Cavity Diameter Cavity Depth Qty.
IPA160-245-X 16 mm 10 mm 25 mm 14.5 mm 21 mm 200 PCS/Box
IPA190-292-X 19 mm 15 mm 29 mm 15 mm 25 mm 100 PCS/Box
IPA252 20 mm 13 mm 25 mm 18 mm 21 mm 100 PCS/Box
IPA276 16 mm 10 mm 25 mm 14 mm 21 mm 100 PCS/Box

Note: The sizes in the above table are for reference only, please contact Biocomma to confirm the sizes of filters for you particular applications.
