Dasang® Mufflers

Dasang® Mufflers

In process of modern industrial production and equipment usage, mufflers can effectively reduce noise from pneumatic devices and provide the best trade-off between noise-reducing and acceptable back pressure in pneumatic systems.
Details

Background

In process of modern industrial production and equipment usage, mufflers can effectively reduce noise from pneumatic devices and provide the best trade-off between noise-reducing and acceptable back pressure in pneumatic systems.

Generally speaking, mufflers come with a wide variety of sizes in order to adapt most standard valves, and their rigid integrated screws enable easy installation on pneumatic devices.

In terms of materials, porous plastic mufflers have many advantages over metal mufflers, including: significant reduction in weights, remarkably improved corrosion resistance, higher capability of filtering particles and aerogels, higher durability, quicker installation and lower costs.

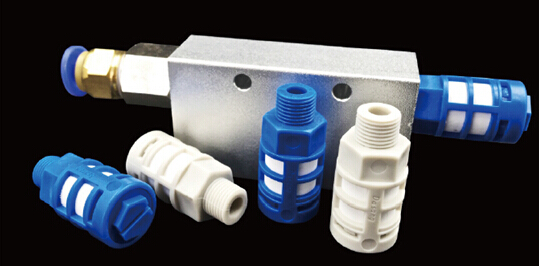

Dasang® mufflers are designed to reduce dynamic noise generated from pneumatic components or exhaust pipes. These mufflers can be directly mounted on exhaust ports of components/devices. With compact design and easy installation, they bring in significant noise-muffling performance.

Product Description:

  • Product name: Dasang® mufflers
  • Working medium: compressed air
  • Working pressure: 0 – 1.0 MPa
  • Connection type: threaded connection
  • Material: plastic

Advantages:

1.Produced with our advanced technology used in producing medical filters;
2.High porosity, high air permeability, precise control of air flowrate;
3.Powerful muffling, reducing noise to 70 dB;
4.Made from medical grade materials compliant with FDA requirements.

Applications:

Used in devices that need noise-muffling, such as electromagnetic valves, vacuum generators
Specifications:
DSP series
Model Thread Size (inch) Noise (dB)
DSP01 G1/8 70
DSP02 G1/4 70
DSP03 G3/8 75
DSP04 G1/2 75
DSP06 G3/4 77
DSP08 G1 79
DSR series
Model Thread Size (inch) Noise (dB)
DSR01 G1/8 70
DSR02 G1/4 70
DSR03 G3/8 75
DSR04 G1/2 75
DSR06 G3/4 77
DSR08 G1 79

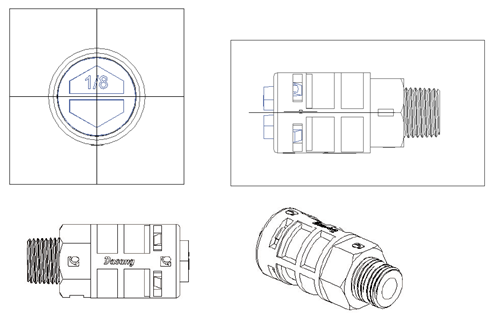

Product Diagrams:

Installations and Precautions:

1.If a plastic mufflers is selected, make sure to prevent it from any collision or stroke with surroundings, don’t screw it in with brutal force, and never expose it to organic solvents.

2.It is not allowed to dismantle a muffler just because the air flowrate through its cylinder seems slow. This operation not only increases noise significantly but also causes dust and impurities in air inhaled through exhaust ports during valve-switching.
